Water saving TMV3 shower systems

Water saving whilst showering

Contrary to what most people believe, water resources in the UK are finely balanced when taking into account consumption per capita and a population of 60 million people, which is continually increasing. This could deteriorate should predicted climate change come to fruition.

Consumption per capita in the UK is double that of our European counterparts, with only half the resources. Our water costs will rise continually as investment is necessary to cope with increased demand in the water supply and waste networks in addition to renewing elements of an aging network delivery system.

On average commercial water costs (for supply and sewage) range between £2 per m3 and over £5 per m3 depending on the water company provider.

But who wants cold showers?

Depending on the heating system used, outlays for the provision of hot water (energy) are often higher than the costs for the supply and disposal of potable water. In hotels, for example, some 13 percent of energy consumption goes towards the provision of hot water, about 75 percent for heating and cooling, and the rest for other uses such as kitchen equipment, cleaning equipment and lighting.
The Rodin Group offer a full range of water and energy-efficient, individual and group, thermostatic mixer-controlled shower products, which comply with TMV3 scheme specifications. Anti-vandal systems and panel showers are also available for demanding installations such as leisure centres.

Cost in use

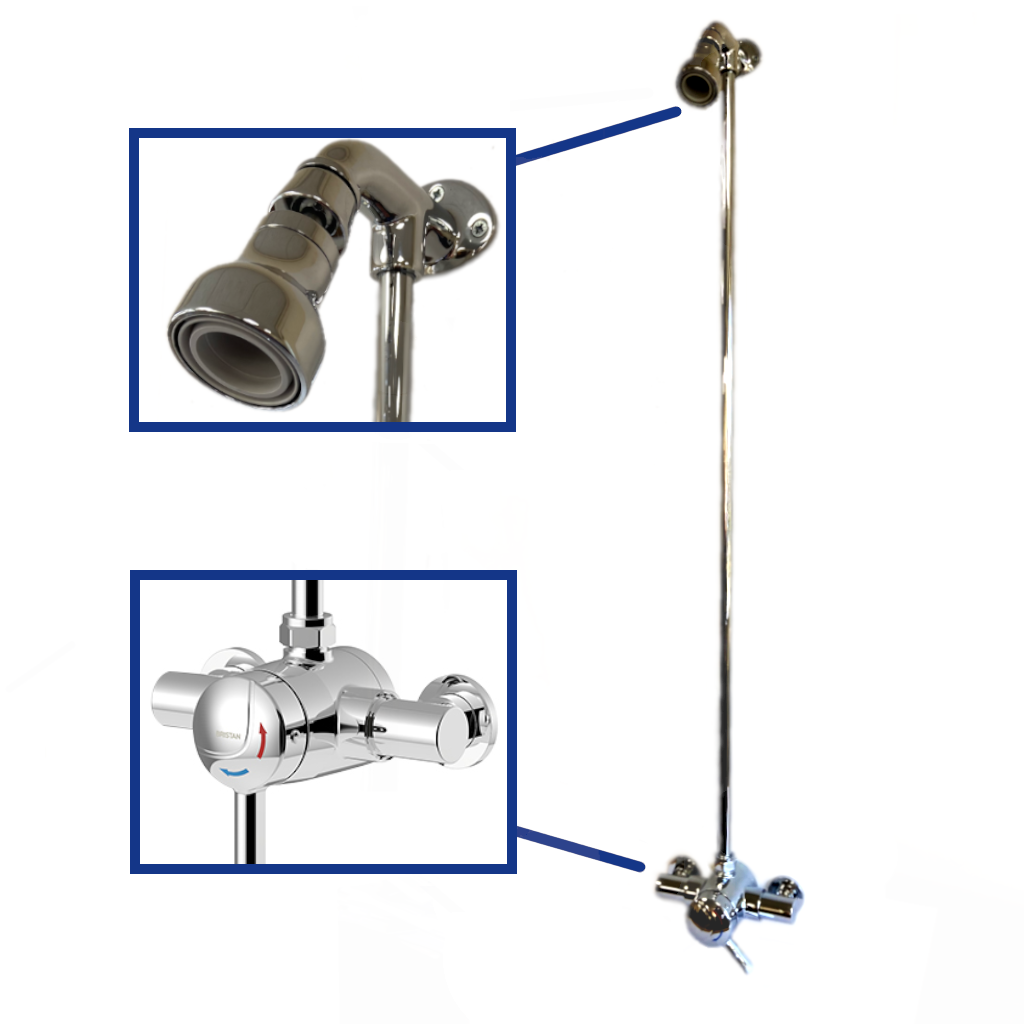

The Rodin Group’s complete range of water and energy-saving products provides considerable cost benefits over traditional sanitaryware. The water-saving showerheads achieve water and energy savings of up to 50%. This is achieved by regulating the water flow and then accelerating the restricted volume to the delivery velocity, atomising the water. This has the effect of increasing the surface area of the water volume delivered out of the showerhead and providing an invigorating and satisfying shower.
The relentless upward trend in water and energy prices means that water conservation measures in commercial establishments such as hotels and hospitals are now seen as an effective means of lowering costs. The resultant savings mean that payback periods for investment are measured in months rather than years. Ask one of the team to provide a consumption comparison between your existing system and a Rodin water-saving system.

Mini shower valve range - TS1203

• Single sequential control for temperature and flow for easy operation
• TMV3 approved gives assured testing of products to the highest standard and use in school/NHS/care home applications
• Automatic thermostatic shut-off in the event of hot or cold supply failure prevents scalding
• Operates with a pressure of 0.2 bar and above which is suitable for gravity and boosted system
• Check valves and serviceable filters are included as standard to prevent debris from damaging the valve
• Lever version only for exposed valve
• Lever and handwheel available for concealed valve
• Concealed and exposed versions available for maximum flexibility
• Top or bottom outlet available
• Warranty period - 1 year

Datasheets

	Rodin Mini TS1203 Exposed Valve - with Lever
	Rodin Mini TS1203 Concealed Valve - with Lever
	Rodin Mini TS1203 Concealed Valve - with Handle

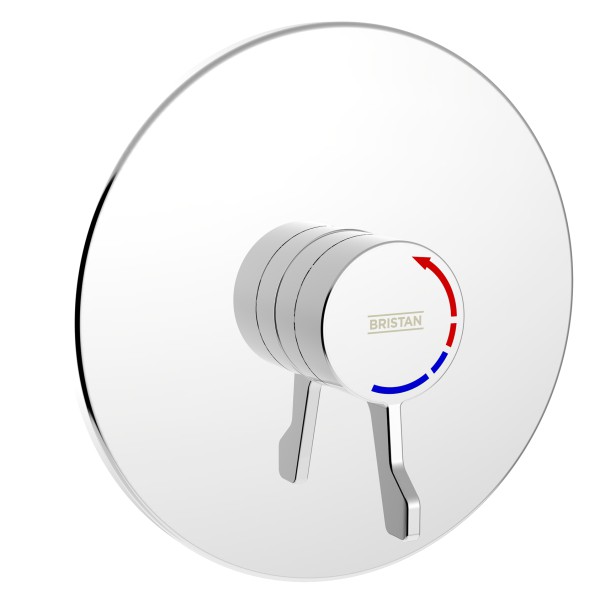

Shower valve range - TS3650

• Single sequential control for both temperature and flow for easy operation
• TMV3 approved gives assured testing of products to the highest standard and use in school/NHS/care home applications
• Automatic thermostatic shut-off in the event of hot or cold supply failure prevents scalding
• Operates with a pressure of 0.2 bar and above which is suitable for gravity and boosted system
• Check valves and serviceable filters are included as standard to prevent debris from damaging the valve
• Concealed and exposed versions available for maximum flexibility
• Integral thermal flushing for infection control
• Warranty period - 1 year

Datasheets

	Rodin TS3650 Exposed Valve - with Lever
	Rodin TS3650 Exposed Valve - with Top Outlet and Lever
	Rodin TS3650 Concealed Valve - with Lever

Water-saving TMV3 shower systems - applications

• Schools
• Sports facilities
• Universities
• Gyms
• Industrial changing/showering facilities
• Hotels
• Care homes
• Hospitals
