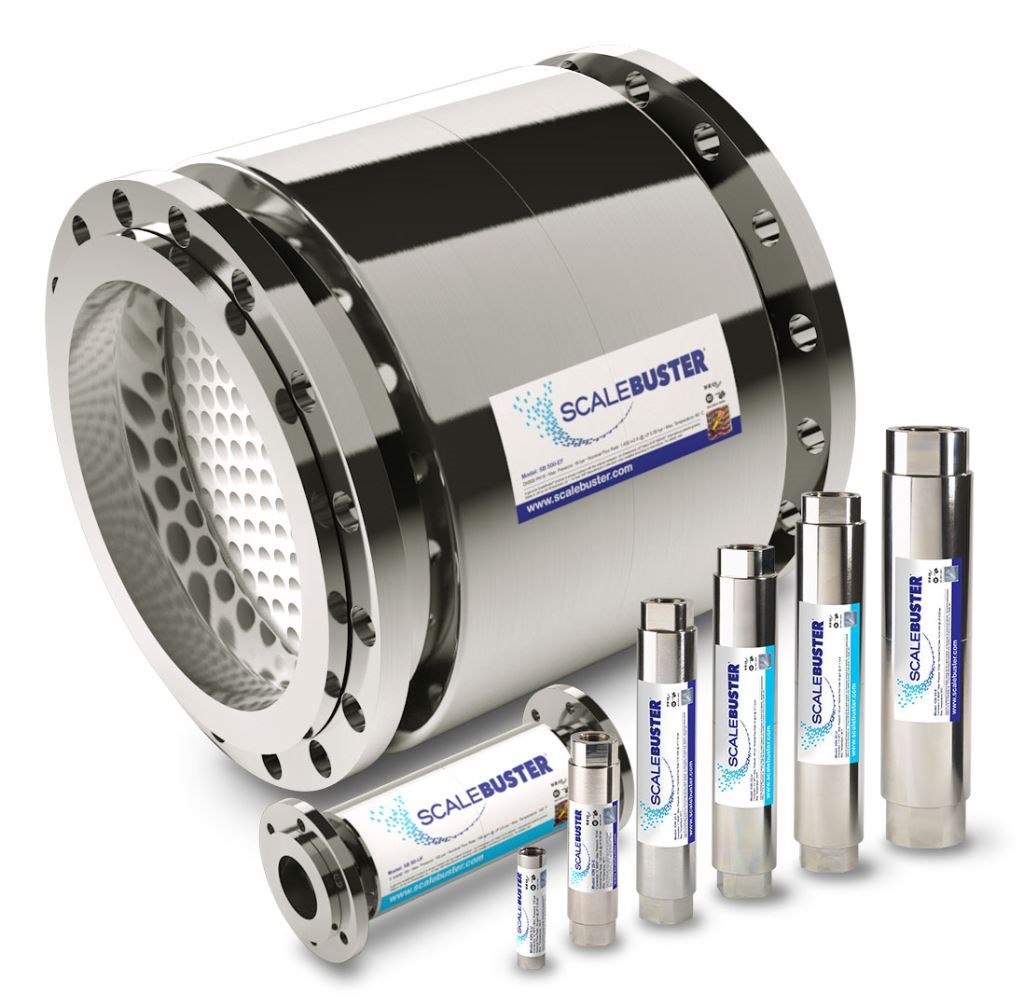

ScaleBuster® 125 mm - 5''
ISB SF125 | ION SB125-EF-16
Scale Buster 5" flanged
WRAS approved
Rodin Part No: ISB SF125
Manufacturers Part No: ION SB125-EF-16
ION ScaleBuster® Limited 10-Year Warranty when used in potable water
- no power requirements or power supply required
- no maintenance or servicing requirements
- no commissioning required
- fit and forget
Technical Information
| Pipe Size | 125 mm (5'') |
| Connection Size | 5" Flange |
| Length | 445 mm |
| Body Diameter | 252 mm |
| Weight | 53 Kg |
| Pressure | Max 16 bar (40 bar on request) |
| Nominal Flow Rate | 90 m3/h (25 l/s @ 2 m/s) |
| Pressure Loss | 0.16 bar @ 39 l/s |
| Max Operating Temperature | Up to 600C |
Installation Instructions and other Documentation
Installation
 |
ScaleBuster Installation Instructions |
 |
ScaleBuster Installation Flanged Model |
Documentation
|
ScaleBuster Brochure |
