ScaleBuster® 150 mm - 6''
ISB SF150 | ION SB150-EF-16
Make:
Model:
Size:
Download:

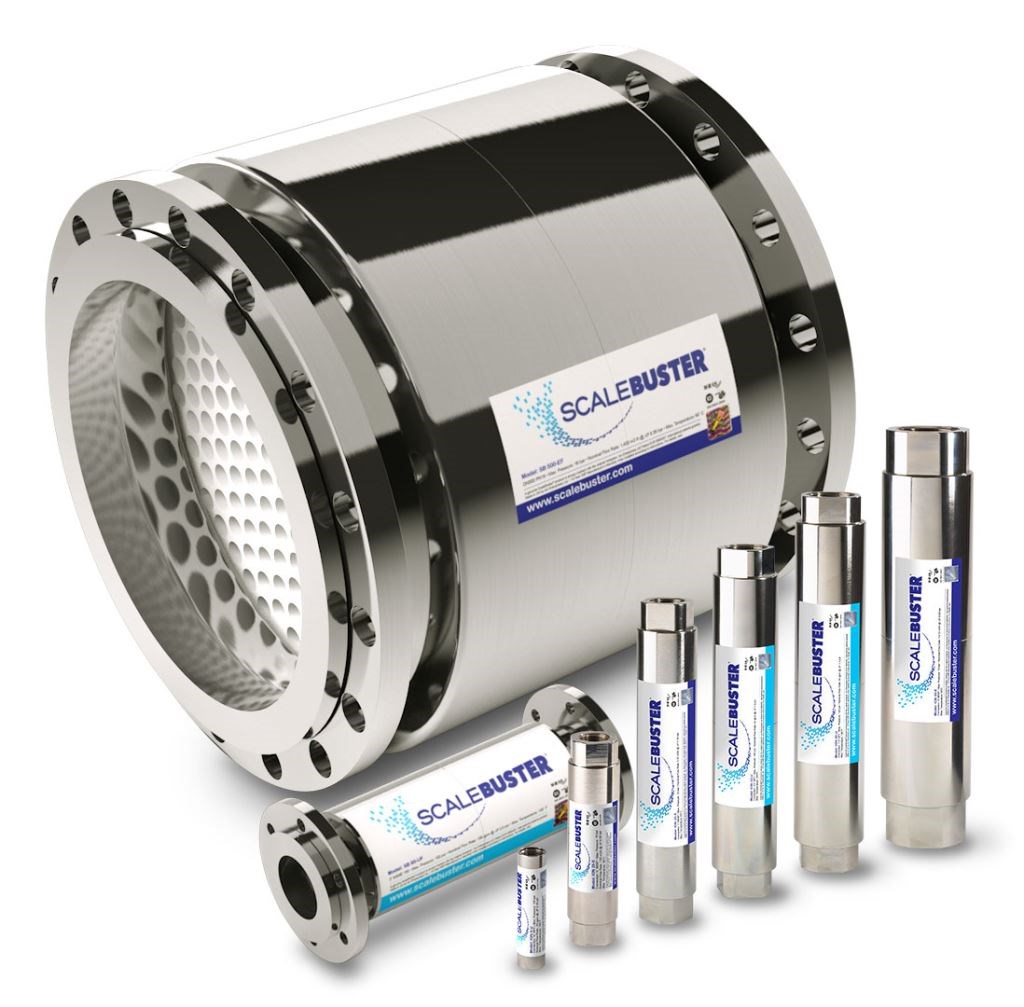

Scale Buster 6" flanged
WRAS approved
Rodin Part No: ISB SF150
Manufacturers Part No: ION SB150-EF-16
ION ScaleBuster® Limited 10-Year Warranty when used in potable water
- no power requirements or power supply required
- no maintenance or servicing requirements
- no commissioning required
- fit and forget
Technical Information
| Pipe Size | 150 mm (6'') |
| Connection Size | 6" Flange |
| Length | 520 mm |
| Body Diameter | 285 mm |
| Weight | 83 Kg |
| Pressure | Max 16 bar (40 bar on request) |
| Nominal Flow Rate | 122.4 m3/h (34 l/s @ 2 m/s) |
| Pressure Loss | 0.1 bar @ 50 l/s |
| Max Operating Temperature | Up to 600C |
Installation Instructions and other Documentation
Installation
 |
ScaleBuster Installation Instructions |
 |
ScaleBuster Installation Flanged Model |
Documentation
|
ScaleBuster Brochure |
