ScaleBuster® 100 mm - 4''
ISB SF100 | ION SB100-EF-16
Make:
Model:
Size:
Download:

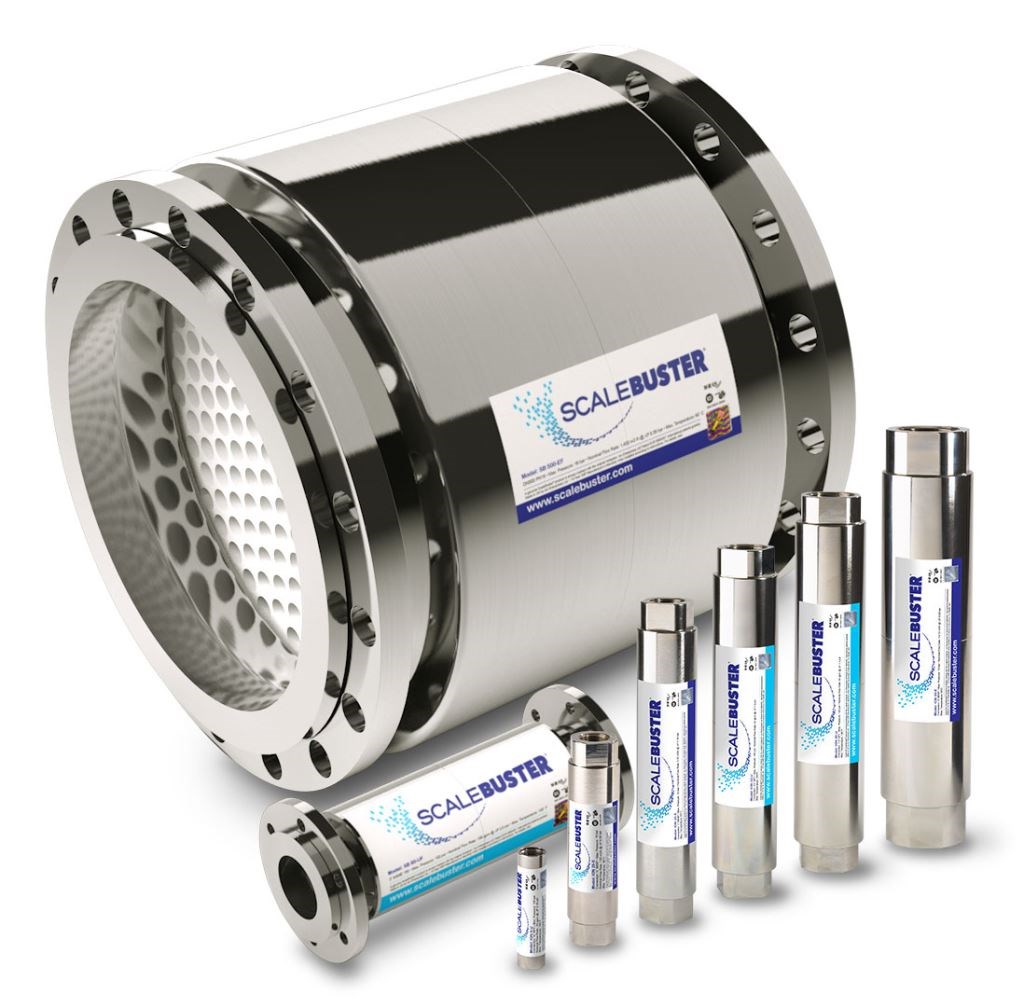

Scale Buster 4" flanged
WRAS approved
Rodin Part No: ISB SF100
Manufacturers Part No: ION SB100-EF-16
ION ScaleBuster® Limited 10-Year Warranty when used in potable water
- no power requirements or power supply required
- no maintenance or servicing requirements
- no commissioning required
- fit and forget
Technical Information
| Pipe Size | 100 mm (4'') |
| Connection Size | 4" Flange |
| Length | 445 mm |
| Body Diameter | 220 mm |
| Weight | 39 Kg |
| Pressure | Max 16 bar (40 bar on request) |
| Nominal Flow Rate | 57.6 m3/h (16 l/s @ 2 m/s) |
| Pressure Loss | 0.12 bar @ 24 l/s |
| Max Operating Temperature | Up to 600C |
Installation Instructions and other Documentation
Installation
 |
ScaleBuster Installation Instructions |
 |
ScaleBuster Installation Flanged Model |
Documentation
|
ScaleBuster Brochure |
